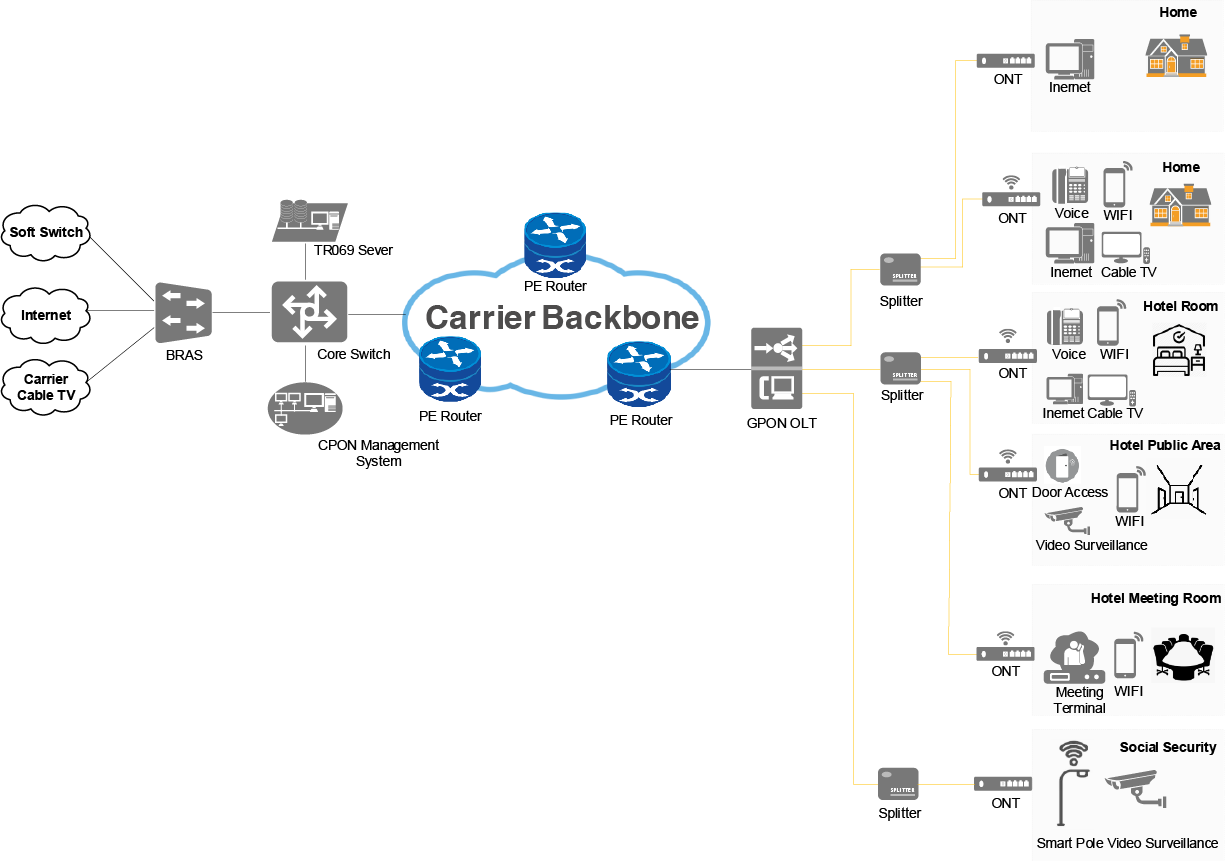

Edgeware FTTX Scenarios
1.Edgeware GPON OLT proved to be the most cost-effective option for the ISP and Tier 2/3 deployments.
2.Service flexibility through full series ONT to cover all your scenarios.
3.End to end product lines to provide the necessary customizations for the installation of OLT. Such as outdoor cabinet, power backup and so on.
Edgeware CGP1604LA 4 Ports GPON OLT
Edgeware CGP1604LA GPON OLT
1.1U height 19 inch standard rack mount.
2.Flexible and easy deployment.
3.Dual 10GE+4*GE RJ45 uplink, adapt to all your scenarios.
4.1+1 power backup, high reliability
5.Easy to manage and friendly management system interface.
6.Can be deployed at triple-play, VPN, IP Camera, ICT applications.
|
Item |
CGP1604LA OLT |
|
|
Chassis |
Rack |
1U 19 inch standard box |
|
1G/10G Uplink Port |
QTY |
6 |
|
Copper 10/100/1000M auto-negotiation |
4 |
|
|
SFP+ 10GE |
2 |
|
|
GPON Port |
QTY |
4 |
|
Physical Interface |
SFP Slot |
|
|
Connector Type |
Class C+ |
|
|
Max splitting ratio |
1:128 |
|
|
Management Ports |
1*10/100BASE-T out-band port, 1*CONSOLE port |
|
|
PON Port Specification(Class C+ module) |
Transmission Distance |
20KM |
|
GPON port speed |
Upstream 1.244G Downstream 2.488G |
|
|
Wavelength |
SC/UPC |
|
Edgeware CGP1608LA 8 Ports GPON OLT
Edgeware CGP1608LA GPON OLT
1.1U height 19 inch standard rack mount.
2.Flexible and easy deployment.
3.Dual 10GE+6*GE RJ45 uplink, adapt to all your scenarios.
4.1+1 power backup, high reliability
5.Easy to manage and friendly management system interface.
6.Can be deployed as broadband, FTTH, hotel scenarios.
|
Item |
CGP1608LA OLT |
|
|
Chassis |
Rack |
1U 19 inch standard box |
|
1G/10G Uplink Port |
QTY |
16 |
|
Copper 10/100/1000M auto-negotiation |
8 |
|
|
GE SFP |
6 |
|
|
10GE SFP+ |
2 |
|
|
GPON Port |
QTY |
8 |
|
Physical Interface |
SFP Slot |
|
|
Connector Type |
Class C+ |
|
|
Max splitting ratio |
1:128 |
|
|
Management Ports |
1*10/100BASE-T out-band port, 1*CONSOLE port |
|
|
PON Port Specification(Class C+ module) |
Transmission Distance |
20KM |
|
GPON port speed |
Upstream 1.244G Downstream 2.488G |
|
|
Wavelength |
SC/UPC |
|
Edgeware CGP1616LA 8 Ports GPON OLT
Edgeware CGP1616LA GPON OLT
1.1U height 19 inch standard rack mount.
2.Flexible and easy deployment.
3.4*10GE+8*GE RJ45 uplink, adapt to all your scenarios.
4.1+1 power backup, high reliability
5.Easy to manage and friendly management system interface.
6.Can be deployed as broadband, FTTH, hotel scenarios.
|
Item |
CGP1616LA OLT |
|
|
Chassis |
Rack |
1U 19 inch standard box |
|
1G/10G Uplink Port |
QTY |
12 |
|
Copper 10/100/1000M auto-negotiation |
8 |
|
|
10GE SFP+ |
4 | |
|
GPON Port |
QTY |
16 |
|
Physical Interface |
SFP Slot |
|
|
Connector Type |
Class C+ |
|
|
Max splitting ratio |
1:128 |
|
|
Management Ports |
1*10/100BASE-T out-band port, 1*CONSOLE port |
|
|
PON Port Specification(Class C+ module) |
Transmission Distance |
20KM |
|
GPON port speed |
Upstream 1.244G Downstream 2.488G |
|
|
Wavelength |
SC/UPC |
|
