Edge Span Design Background

Requirement

* Rated power under 150W
* UPS and battery for power backup
* Consider backhaul method
* Can deploy anywhere
* Easy installation
* Complete software functions.

Our Consideration

* Standard design, series models.
* Blade site, easy installation.

Edge Span

X=(S)c

200w Blade Type Outdoor Edge Network

Power Solution

Small but complete, change as you like

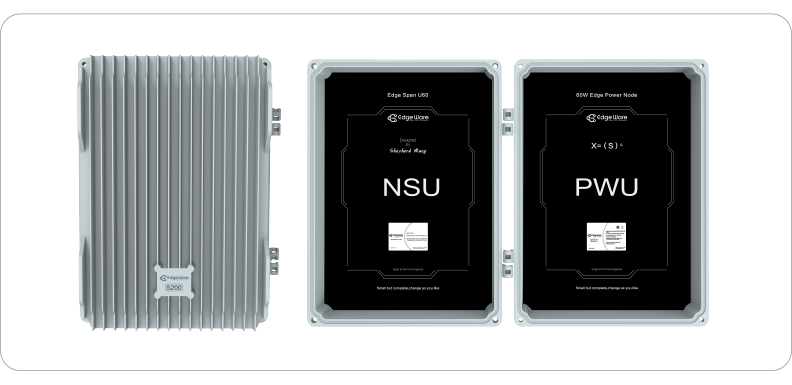

Edge Span 200 Series Product Family

Edge Span

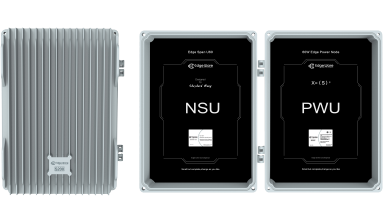

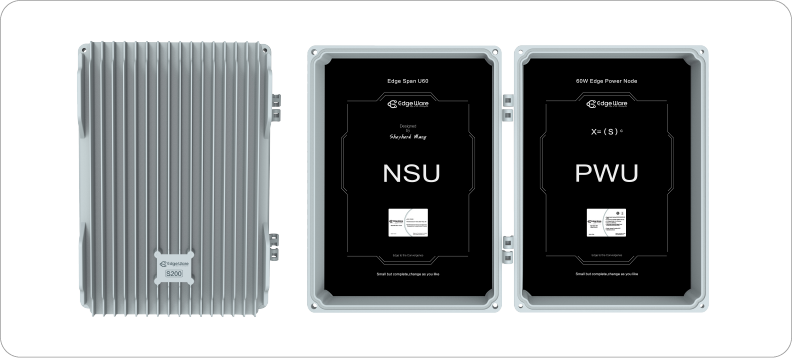

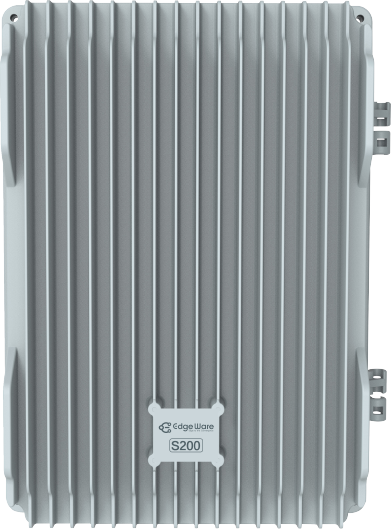

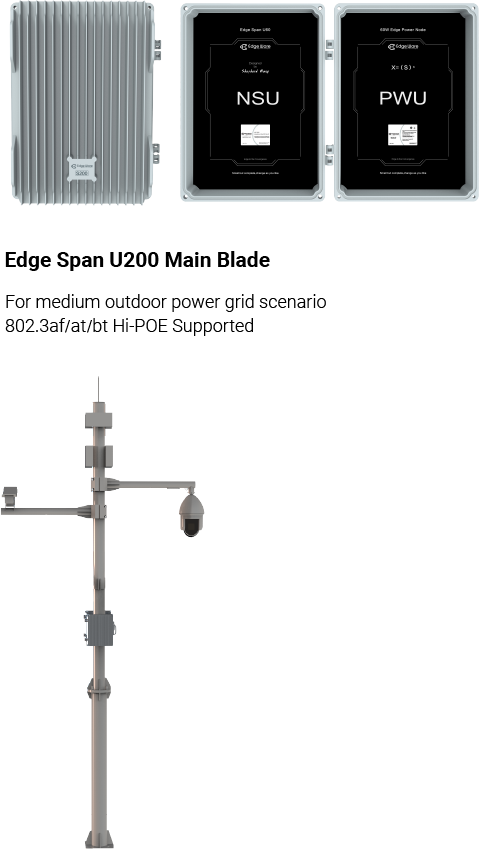

U200 Main Blade

* 200W UPS system with 10AH@48V lithium battery,
* Surge suppressor and smart breaker system included.
* Changeable network module with switch, router, 4G, GPON options.
  5G on roadmap, POE. ( 3-8GE downlink ports)
* Full system monitoring with Edgeware Convergence Software Platform,
* External device power providing with DC12V or DC24V and DC48V
* RS485 external interface

Edge Span
B200 Battery Blade

* 50AH@48V with typical configuration for B200 used in S200.
  100AH@24V for S200 solar scenarios.
   But battery capacity can be customized based on requirement.
* Expand when you grow. No need to change Edge Span U200 and S200.

Edge Span

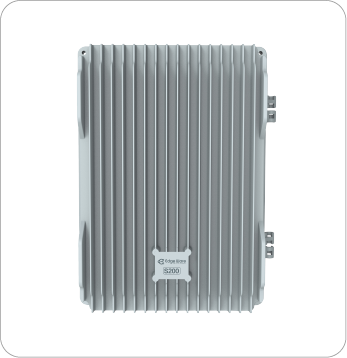

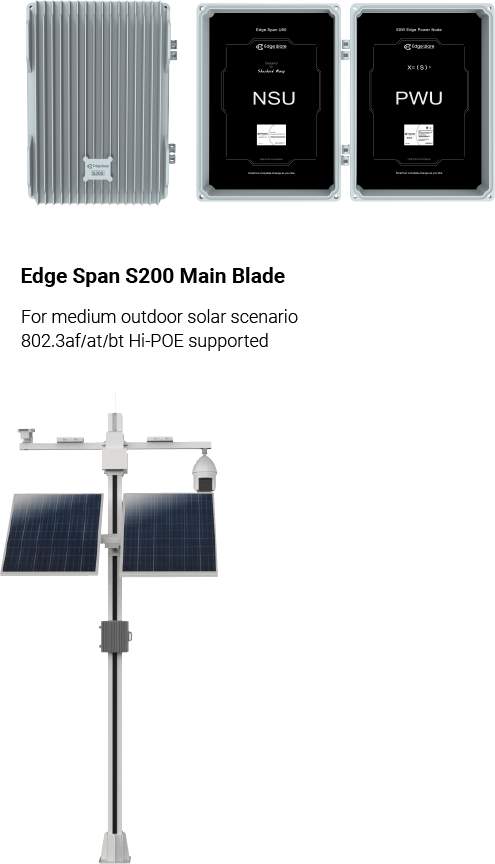

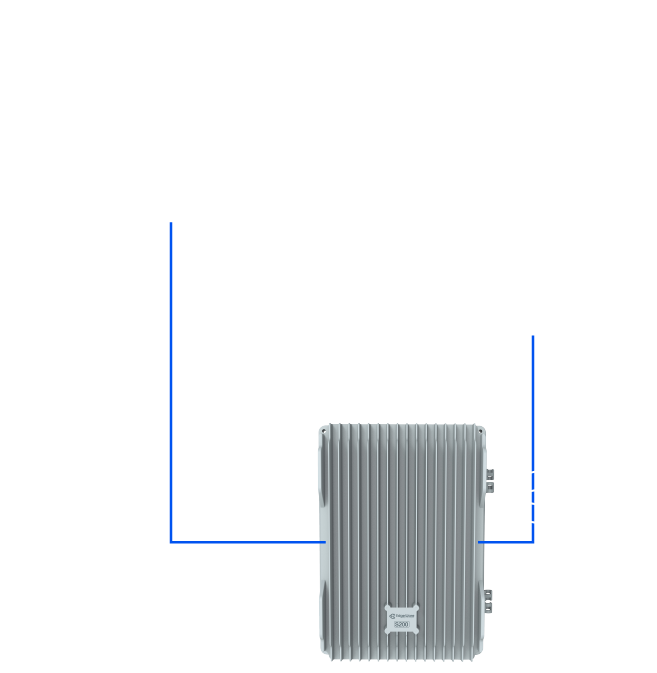

S200 Main Blade

* 400/800w solar controller system. Battery configuration in battery expansion blade
* Surge suppressor and smart breaker system included.
* Changeable network module with switch, router, 4G, GPON options.
  5G on roadmap, POE. ( 3-8GE downlink ports)
* Full system monitoring with Edgeware Convergence Software Platform,
* External device power providing with DC12V or DC24V and DC48V.
* RS485 external interface

Edge Span
200 Series Structur

* Dimension: W*D*H 295mm*355mm*174mm
* 13kg(with all system)
* IP67 full aluminum material , no fan design.

Edge Span 60 Series Product Family

Edge Span

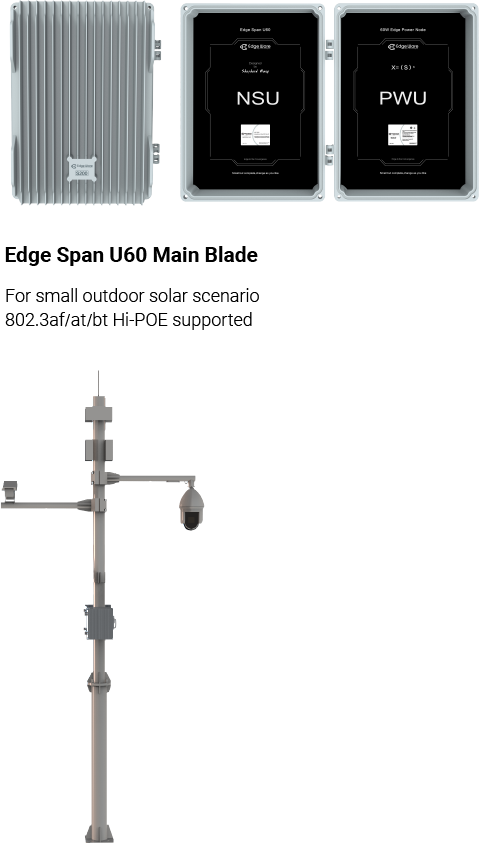

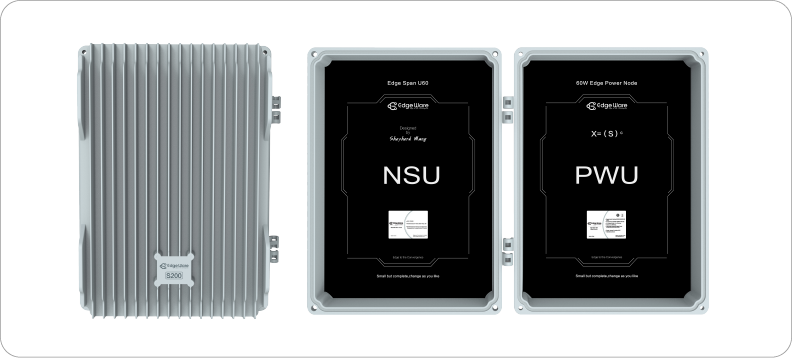

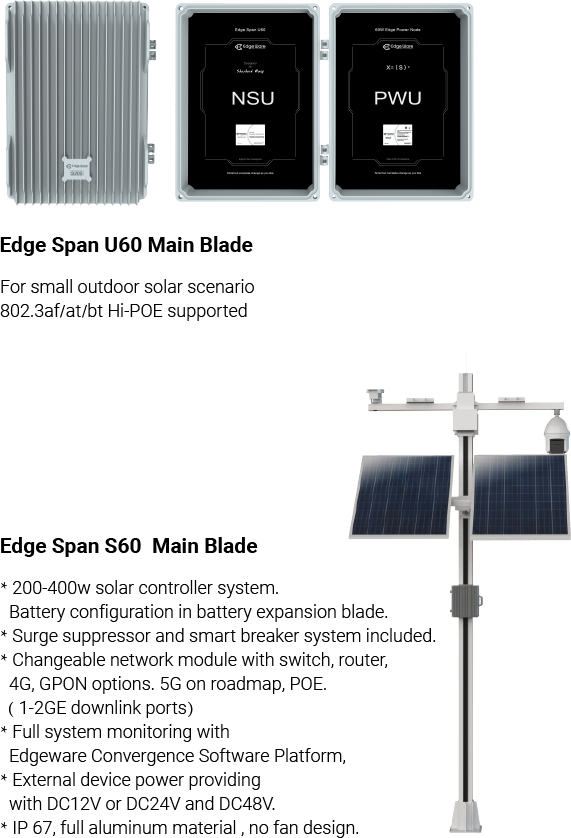

U60 Main Blade

* 60W UPS system with 4.8AH@48V lithium battery,
* Surge suppressor and smart breaker system included.
* Changeable network module with switch, router, 4G, GPON options.
  5G on roadmap, POE. ( 1-2GE downlink ports)
* Full system monitoring with Edgeware Convergence Software Platform,
* External device power providing with DC12V or DC24V and DC48V.
* IP 67, full aluminum material , no fan design.

Edge Span
B60 Battery Blade

* 20AH@48V with typical configuration used for U60.
  40AH@24V for S200 solar scenarios.
  But battery capacity can be customized based on requirement.
* Expand when you grow. No need to change Edge Span U60 and S60.
* IP67 full aluminum material , no fan design.

Edge Span
S60  Main Blade

* 400w solar controller system. Battery configuration in battery expansion blade.
* Surge suppressor and smart breaker system included.
* Changeable network module with switch, router, 4G, GPON options.
  5G on roadmap, POE. ( 1-2GE downlink ports)
* Full system monitoring with Edgeware Convergence Software Platform,
* External device power providing with DC12V or DC24V and DC48V.
* IP 67, full aluminum material , no fan design.

Edge Span

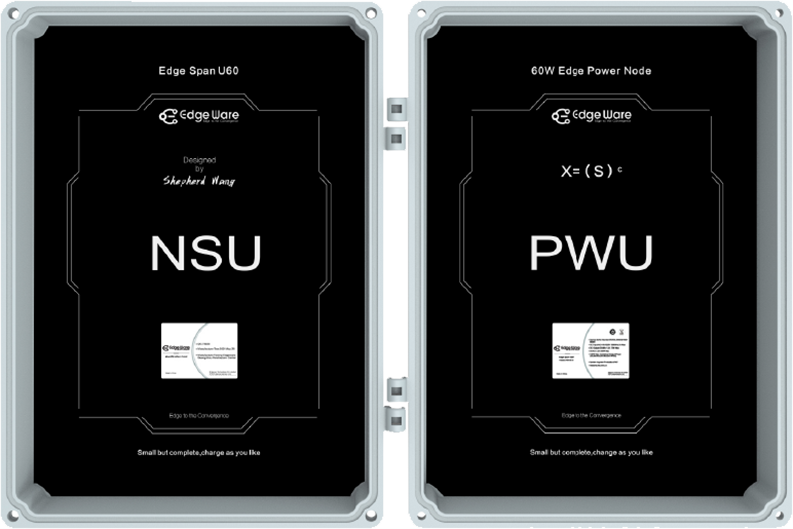

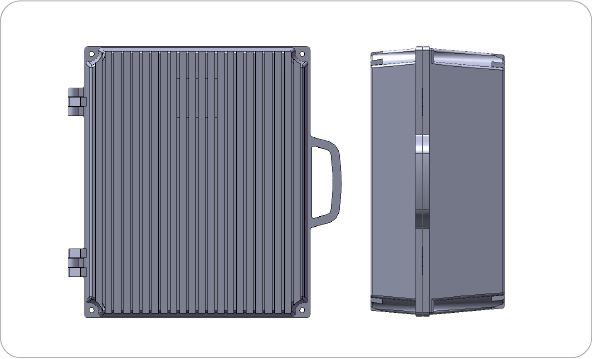

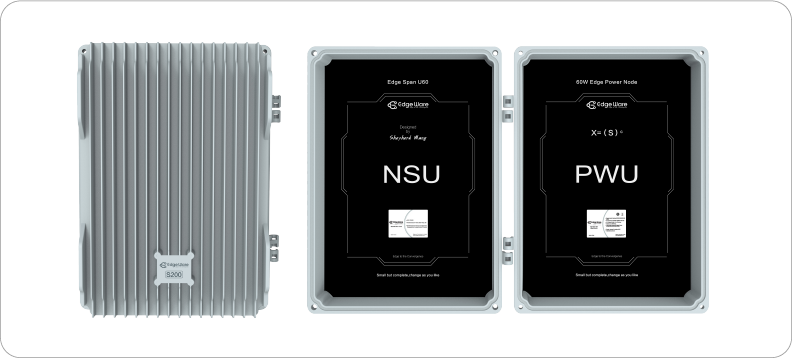

60 Series Structure

* Dimension: W*D*H 230mm*355mm*135mm
* 7.8kg(with all system)
* IP67 full aluminum material , no fan design.

Edge Span 60 and 200 Series Application

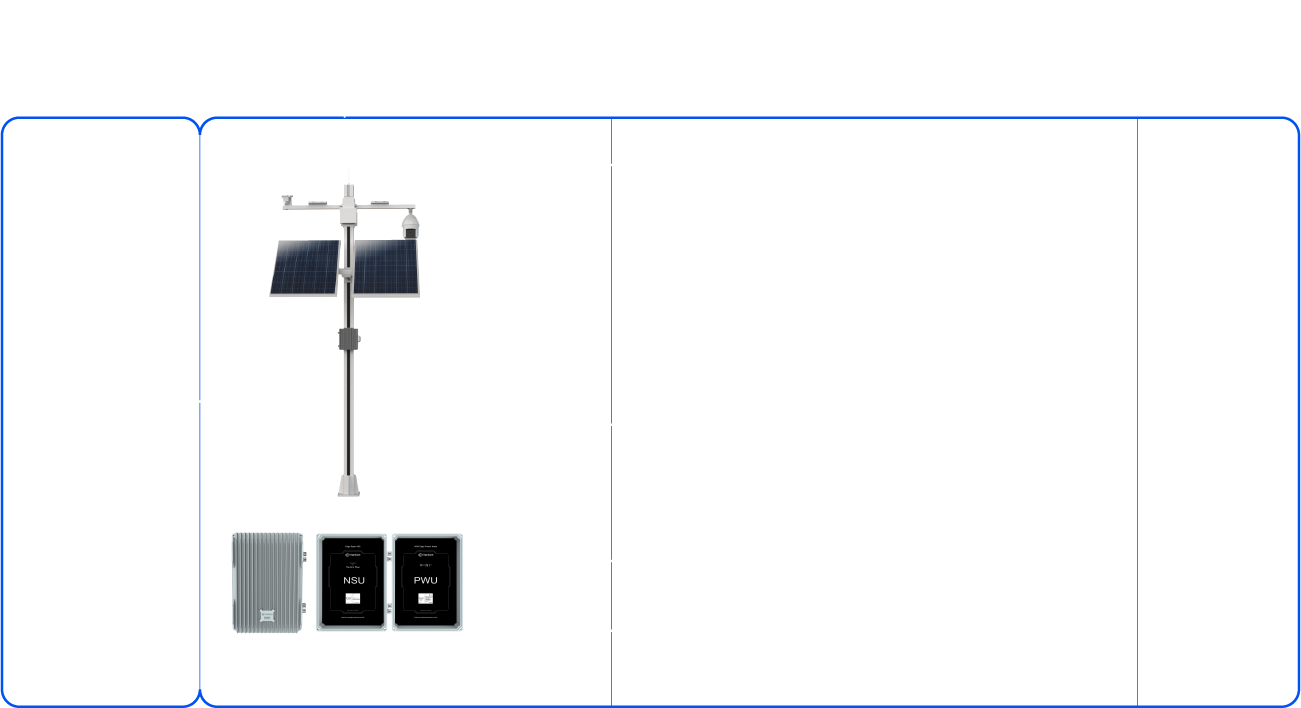

Edge Span U200/S200

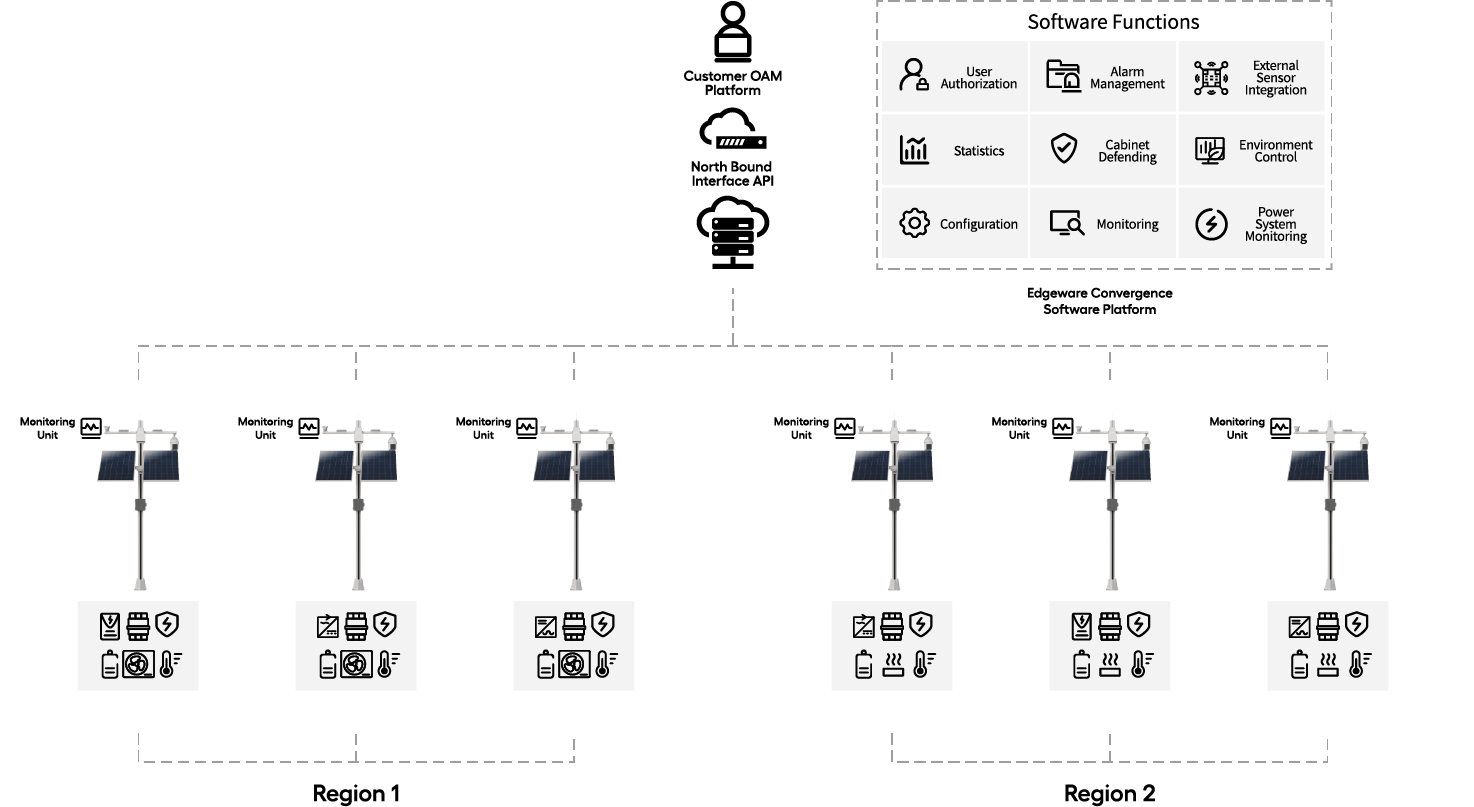

Edgeware Convergence
Software Platform

Edge Span U60/S60

Solar and Power Grid Hybrid System

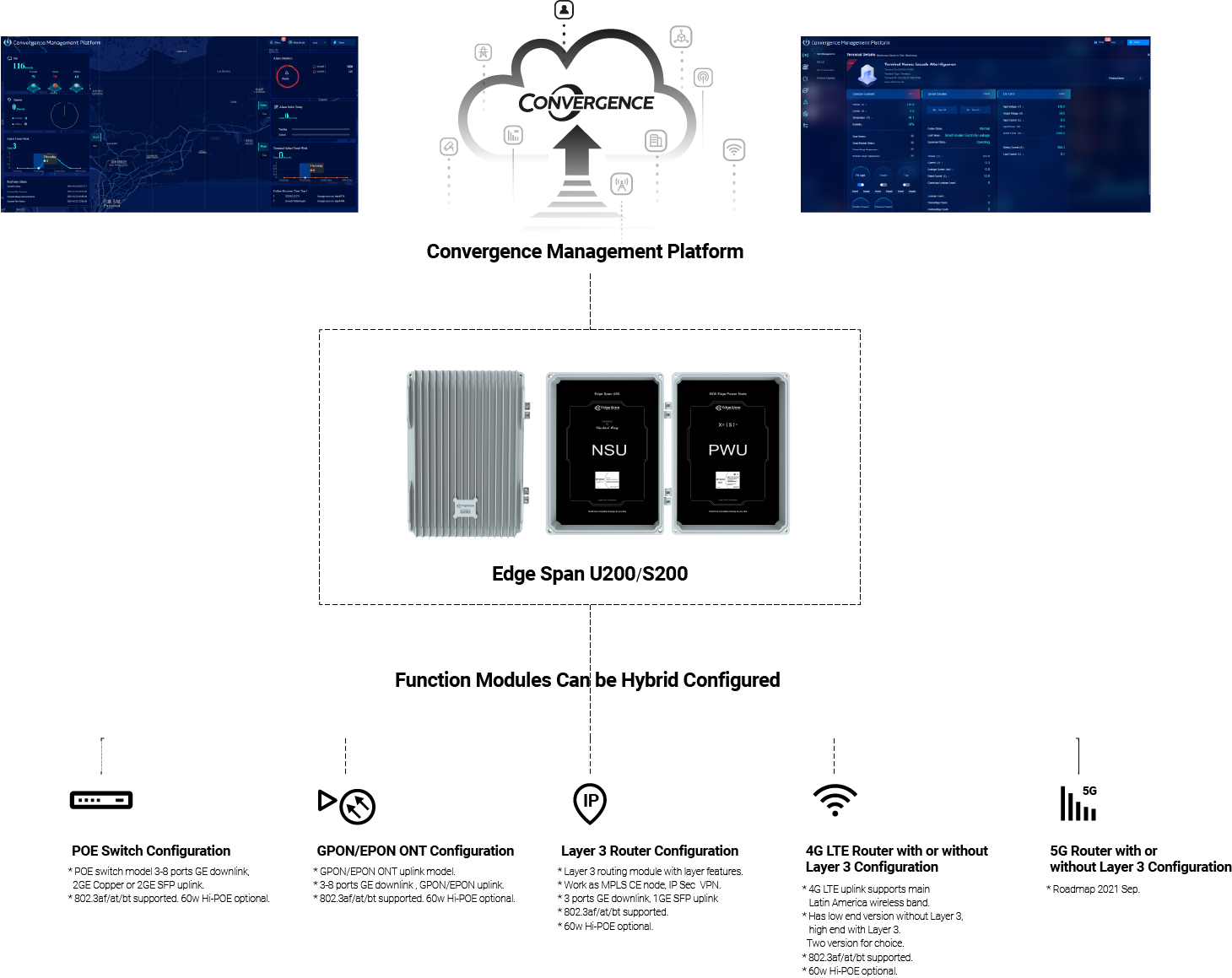

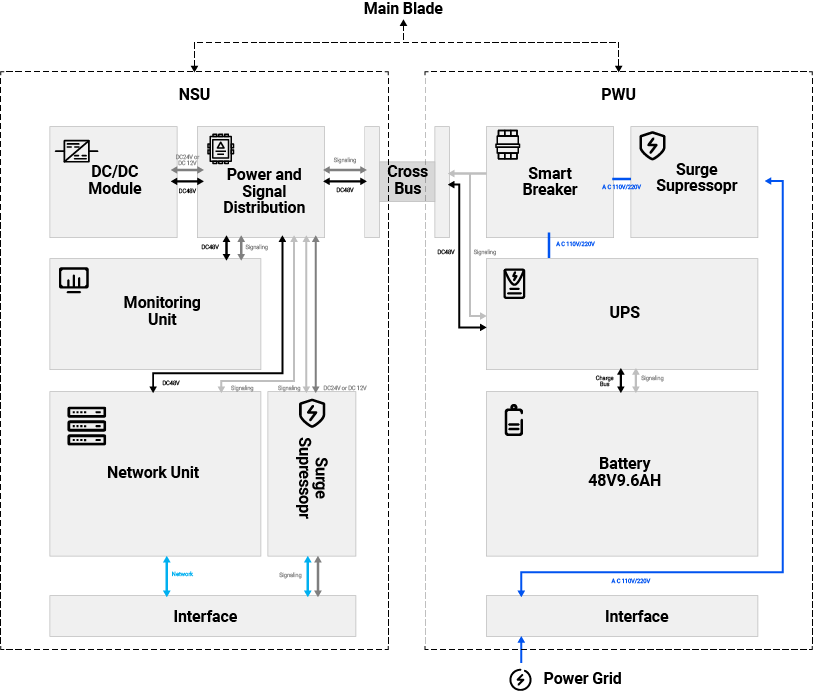

Edge Span Management and Network Modules

Solar and Power Grid Hybrid System

Problems from Power Input



* The power input and daily operation of the power system will face challenges.
* Lighting surge frequently happen in Central America during raining season.
* Power grid electricity quality is not good bring over or under voltage.
  Solar panel voltages changes also bring same problems.
* Short circuit sometimes happen will damage the whole system if we don’t have protection.
* Current leakage will put engineer in danger.

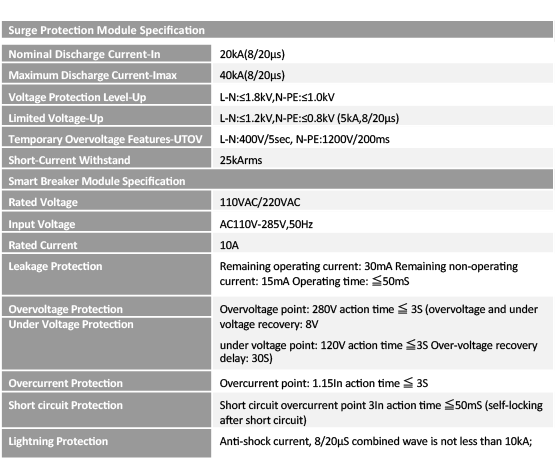

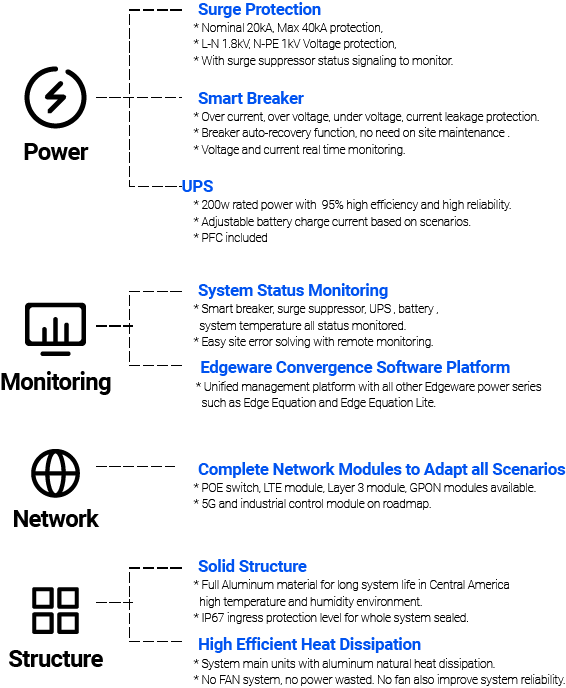

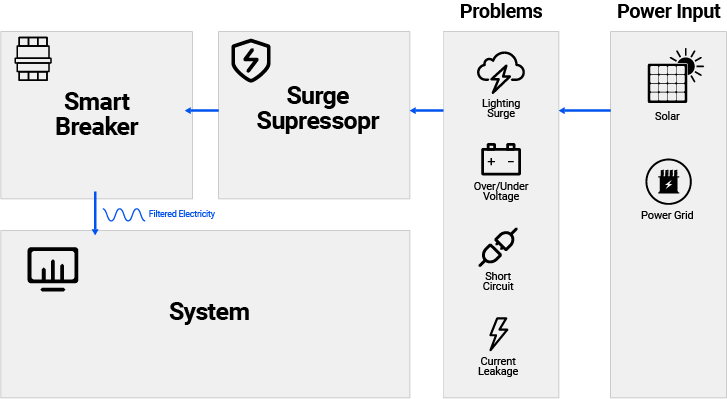

All in One Surge Protection and Smart Breaker Module
to Give Comprehensive Protection



* Surge suppressor will absorb the surge from lighting and power grid.
* The smart breaker will provide over/under voltage , over current ,
  short circuit  and current leakage protection.
* When these happen, the smart break will go into protection mode and can off the load power .
* When the electricity comes back to normal status,
  the smart breaker will recover by itself. Not need on site operation.

Solar and Power Grid Hybrid System

Problems from Power Input



* The power input and daily operation of the power system will face challenges.
* Lighting surge frequently happen in Central America during raining season.
* Power grid electricity quality is not good bring over or under voltage.
  Solar panel voltages changes also bring same problems.
* Short circuit sometimes happen will damage the whole system if we don’t have protection.
* Current leakage will put engineer in danger.

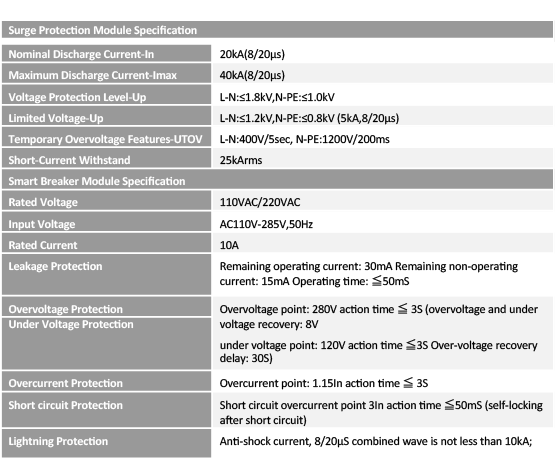

All in One Surge Protection and Smart Breaker Module
to Give Comprehensive Protection



* Surge suppressor will absorb the surge from lighting and power grid.
* The smart breaker will provide over/under voltage ,
  over current , short circuit  and current leakage protection.
* When these happen,
  the smart break will go into protection mode and can off the load power .
* When the electricity comes back to normal status,
  the smart breaker will recover by itself. Not need on site operation.

Whole System Monitoring

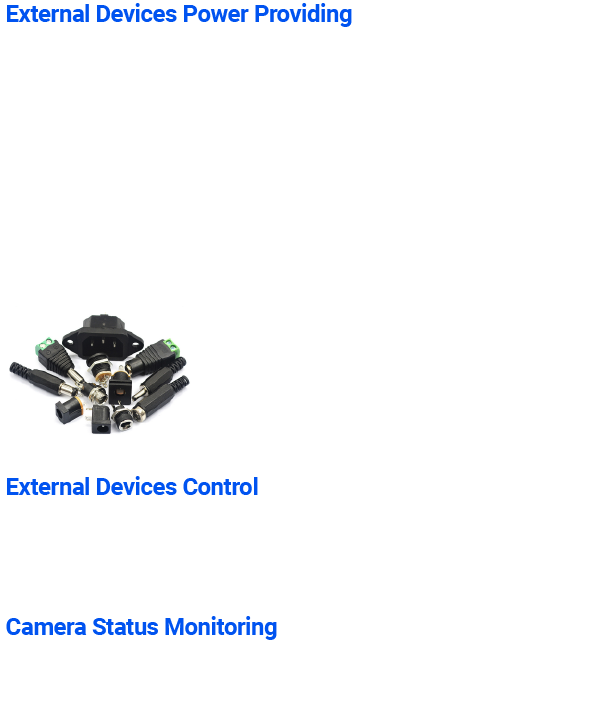

External Devices Power Providing and Monitoring

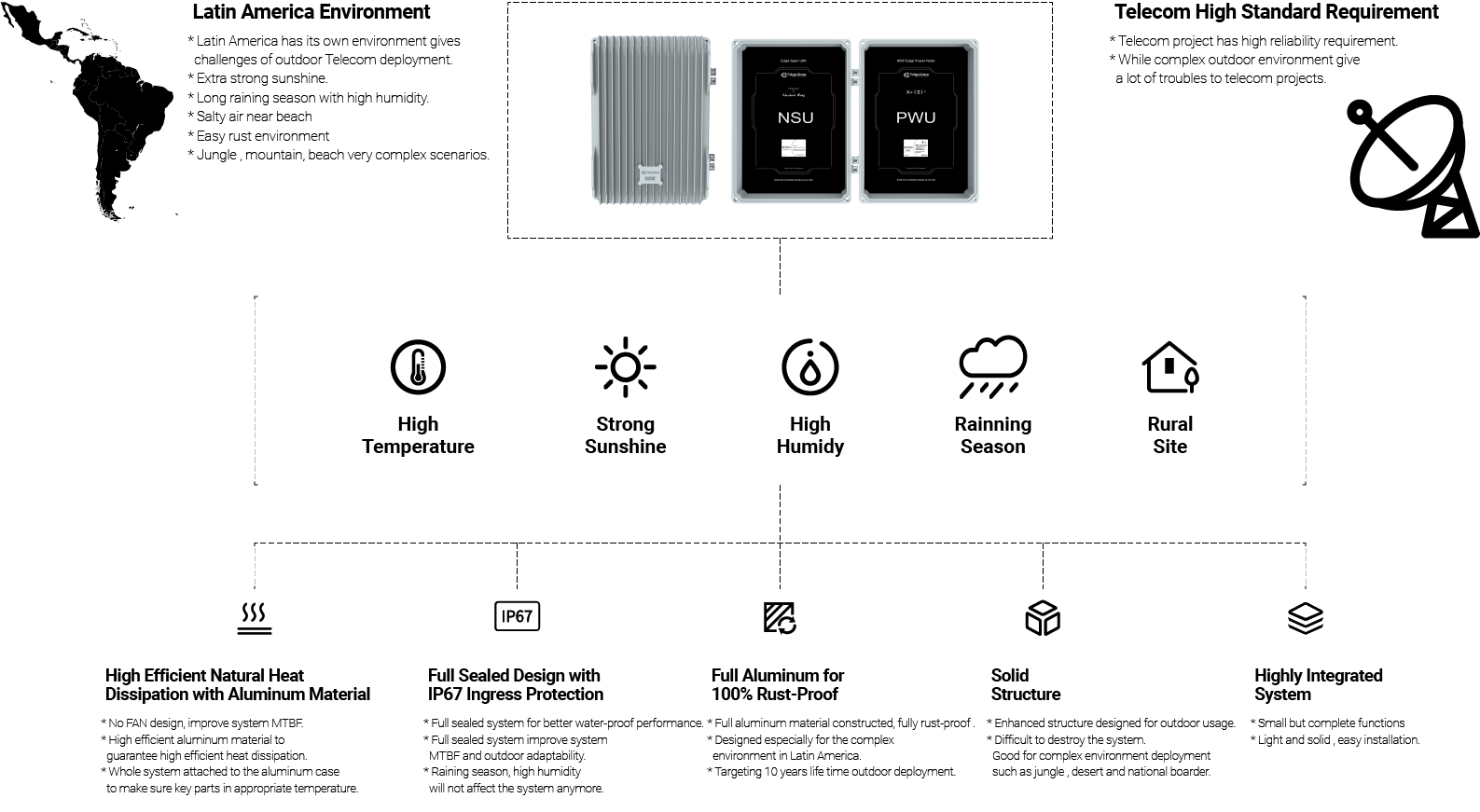

Comprehensive Structure Design for Harsh Environment

Comprehensive Structure Design for Harsh Environment

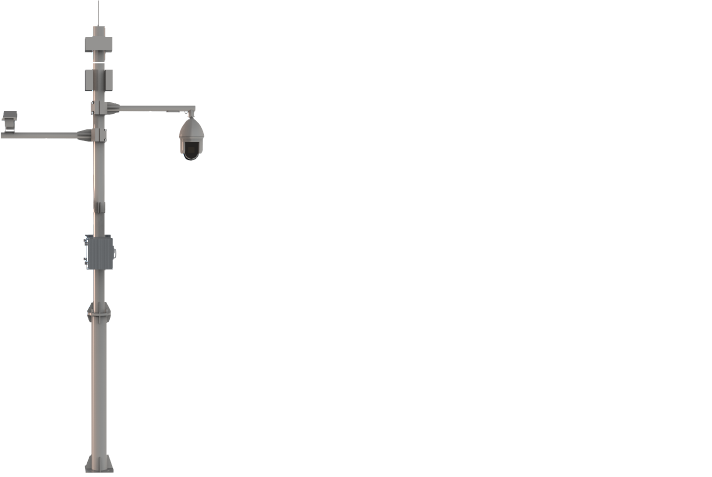

Pole System is Important for the Project Success

* Pole system needs to be defined by project.
* Project by project , requirement is different.
  So customization and design based on requirement is very important.
* Pole system related to the system reliability.
  For example , if pole system doesn’t design precisely with wind and environment,
  will affect the camera availability.
* Pole system carry the value of the whole project.
  When the design is too bad, quality is too bad,
  will affect the impression of customer on whole project.
* Pole system also will affect greatly the installation cost and OPEX.



Edgeware Capability

* Design the whole project with you for Edge Span as well as the pole.
* Side by side, case by case customization even with small quantity.
* Solid and good quality.
* Seeking the best present of the whole system.

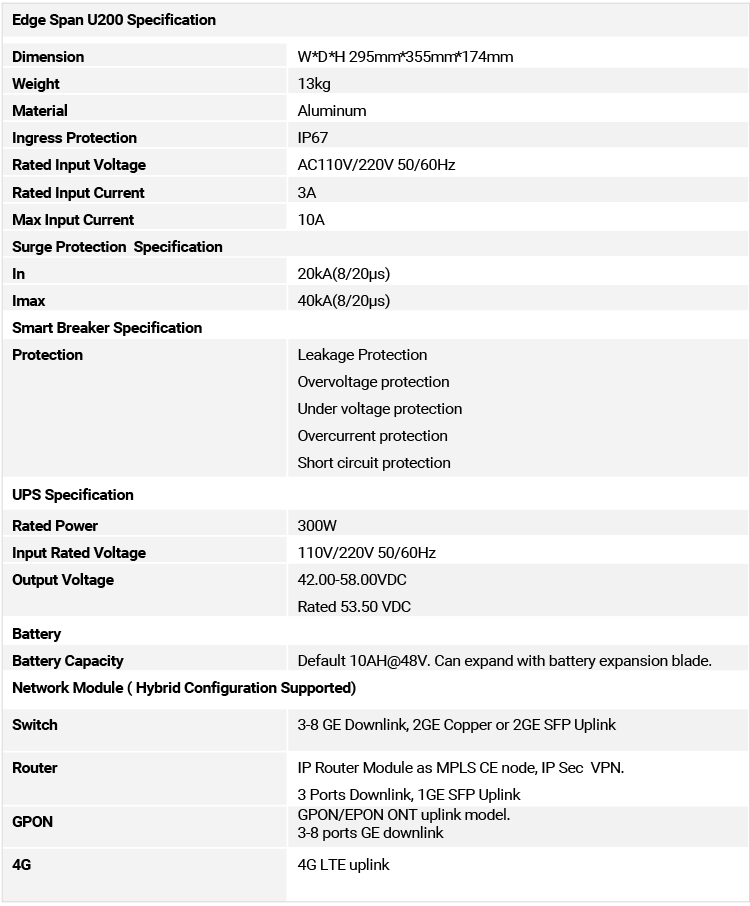

Edge Span U200 Specifications

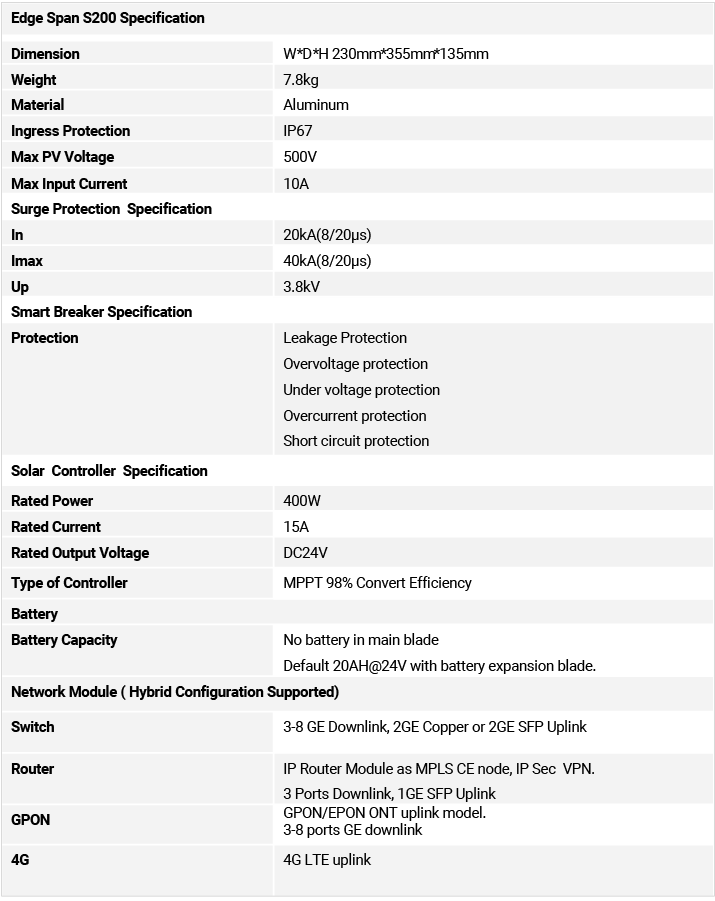

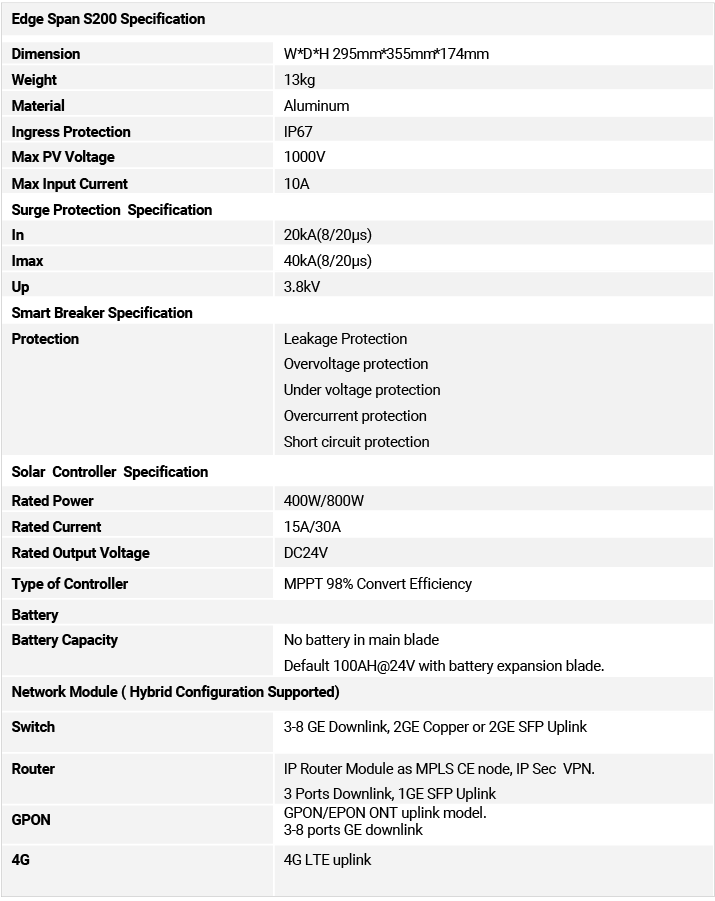

Edge Span S200 Specifications

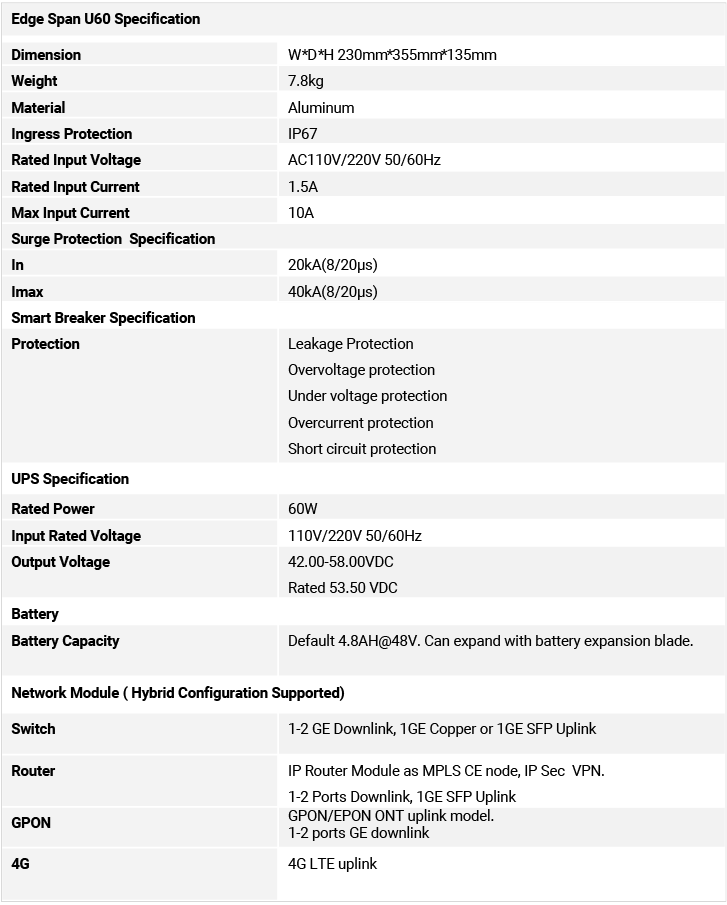

Edge Span U60 Specifications
