ECM43A21A--2

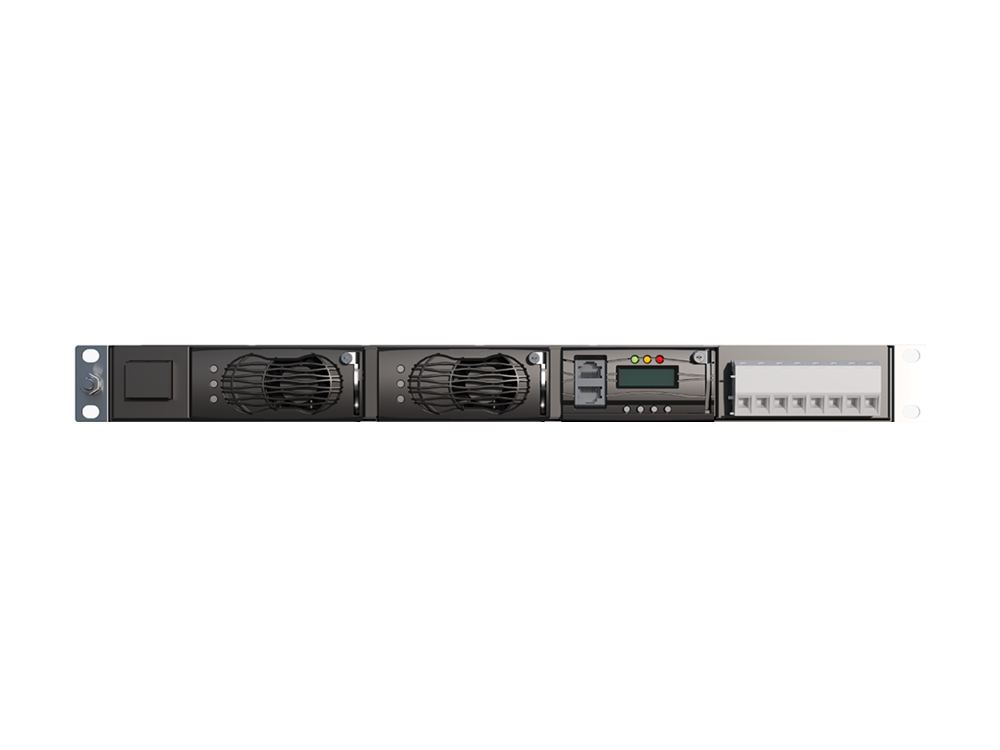

ECM43A21A



Product Description

ECM43A21A power supply system converts AC power into stable and reliable 48V DC power. The maximum output current of the system is 60A, and the maximum output power is 3.48KW. The product is fully digitally designed with high reliability, high power density and high performance.

The system adopts modular design and supports hot-swappable online maintenance. Can be installed in 19-inch racks. Compatible with outdoor base station cabinets, outdoor computer rooms, etc., can form an outdoor and outdoor DC integrated.



Performance

  • Wide input voltage range: 85~300VAC
  • Compact structure, full front operation, support indoor embedded installation, outdoor base station cabinet installation
  • The rectifier module adopts full digital control, and the efficiency is over 92%
  • Both rectifier and monitoring support hot-swappable technology, easy to install and maintain
  • Complete battery management functions: it can realize functions such as temperature compensation, automatic voltage regulation, stepless current limiting, battery capacity calculation, online battery testing and battery low-voltage protection
  • Network design, can provide RS485/232, TCP/IP, dry contact and other communication interfaces, flexible networking, can be selected according to actual needs, to achieve remote monitoring, unattended functions, complete energy-saving sleep function, and further Improve system efficiency
  • Perfect AC, DC side, signal side lightning protection design
ECM45D45X1-

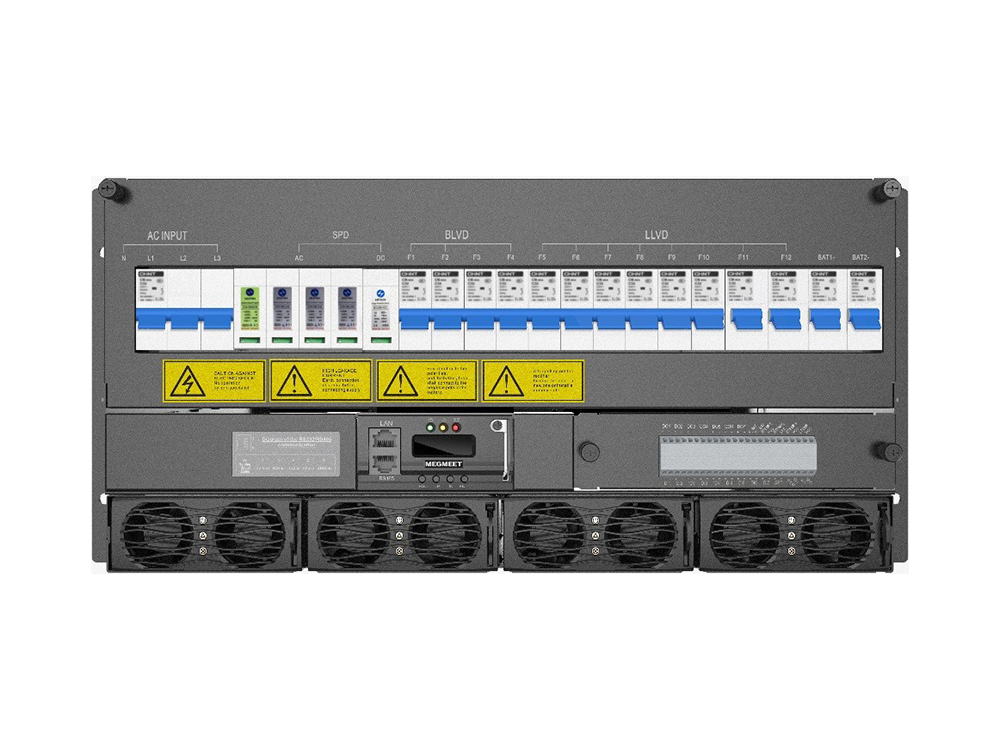

ECM45D45X1



Product Description

The ECM45D65A1 embedded power system realizes 6*50A module configuration in a height of 5U, with high reliability, the switch is arranged on the front, and the front wiring is safe to operate, neat and beautiful. Used in high-end professional networks, such as small switching centers, transmission sites, small base stations, and broadband access.

The maximum capacity of the system is 300A. The system is equipped with AC input, battery protection switch and battery power-off function.



Performance

  • 19-inch standard width, wide installation adaptability
  • Ultra-compact design, 5U height
  • Front wiring, front operation, safe and beautiful
  • Wide input voltage range, strong grid adaptability
  • 5+1 module configuration, high reliability
  • With energy-saving sleep function, improve system efficiency
  • Wide operating temperature range, strong environmental adaptability
  • Rectification and monitoring support hot swap, fast and convenient maintenance
  • Provide network port, serial port, dry contact communication interface, easy
  • Realize remote monitoring
ECM45D65B

ECM45D65B



Product Description

The ECM45D65A1 embedded power system realizes 6*50A module configuration in a height of 5U, with high reliability, the switch is arranged on the front, and the front wiring is safe to operate, neat and beautiful. Used in high-end professional networks, such as small switching centers, transmission sites, small base stations, and broadband access.

The maximum capacity of the system is 300A. The system is equipped with AC input, battery protection switch and battery power-off function.



Performance

  • 19-inch standard width, wide installation adaptability
  • Ultra-compact design, 5U height
  • Front wiring, front operation, safe and beautiful
  • Wide input voltage range, strong grid adaptability
  • 5+1 module configuration, high reliability
  • With energy-saving sleep function, improve system efficiency
  • Wide operating temperature range, strong environmental adaptability
  • Rectification and monitoring support hot swap, fast and convenient maintenance
  • Provide network port, serial port, dry contact communication interface, easy
12

Scenario Dedicated UPS

With the widespread use of IoT, 4G/5G, and the development of solar technology, more and more sites are deployed outdoor. The construction form and energy supply of these sites are often deeply integrated with their application scenarios. On the other hand, all kinds of power solutions on the market are based on standardized equipment and cannot fit to your scenario and application very well. Edgeware deeply understands these pain points of customers, and can customize and develop different power systems for customers to precisely match its solutions. As long as you can imagine, we can give you the solution.

image11-2

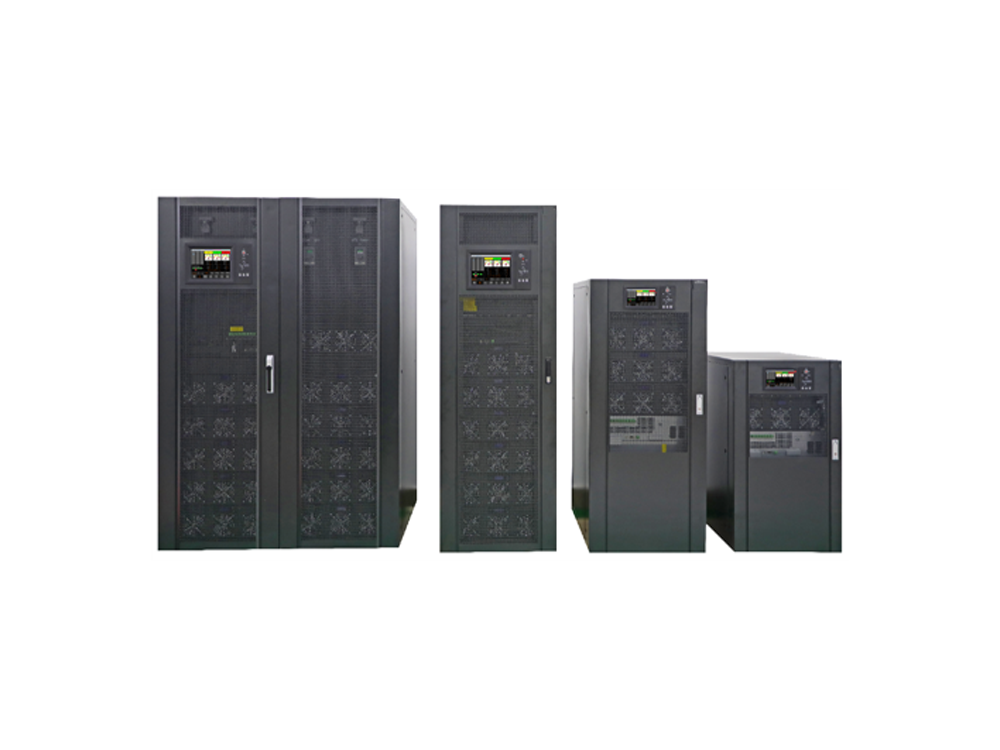

Standard UPS

Edgeware has a full range of UPS products. The product line covers a comprehensive range, from 500VA for general office applications to 500KVA equipment for large-scale data center backup power solutions. Edgeware has long been committed to network energy solutions, so it has accumulated a lot of research and development experience and knowledge in the industry. Can provide you with a stable, reliable and cost-effective integrated UPS system. Edgeware UPS systems are widely used in major operators, data centers, large, medium and small enterprises and government agencies in the Americas.
